Beyond Steel Thickness: Maximizing Spring Cone Crusher Lifespan and Circuit Synergy
Thickness: Maximizing Spring Cone Crusher Lifespan and Circuit Synergy
In high-abrasion mining configurations and aggregate plants processing river pebbles, granite, basalt, or iron ore, the secondary and tertiary reduction stages dictate the profitability of the entire production circuit. Many plant managers assume that the durability of a stone cone crusher depends solely on the thickness of its outer frame, neglecting the critical impact of internal structural health and active component protection.
When uncrushable tramp iron jams the cavity, or when fine dust invades the lubrication circuit, unexpected breakdown costs soar while downstream screening operations grind to a halt. To break this costly cycle, choosing a heavy-duty spring cone crusher engineered with a proactive protection matrix has become the global standard for high-yield quarry operators.
Our industrial-grade rock cone crushers—supporting reliable capacities from 60 t/h up to 1000 t/h with a flexible discharge range of 3mm to 60mm—are built to absorb severe operational stress while drastically minimizing your routine maintenance overhead.
Adaptive Overload Insurance and Dust Protection

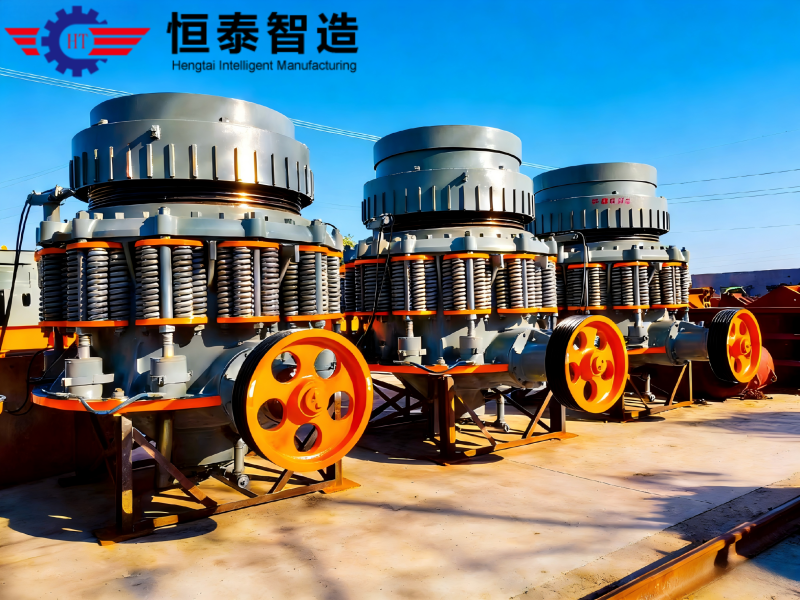

To eliminate the two most common causes of catastrophic quarry downtime, our spring cone crushers incorporate advanced adaptive safety mechanisms. Surrounding the upper frame, a heavy-duty steel spring safety system acts as an uncrushable relief valve. When steel fragments or excavator teeth accidentally enter the crushing chamber, the spring stack compresses instantly, lifting the supporting ring to automatically widen the discharge gate. This purges the foreign metal block without stopping the motor, protecting the vertical main shaft and eccentric bushing from devastating shock loads.
Furthermore, to combat the abrasive dust cloud inherent in quarrying, the machine utilizes a dual-mode dry oil and water sealing matrix. This dual barrier prevents fine quartz and rock powder from penetrating the sliding and thrust ball bearings. Operating alongside an automated centralized thin oil lubrication system that actively dissipates heat, the internal driving gears remain perfectly lubricated for continuous 24-hour operations.
(To help your site mechanics master the exact oil flush routines and core bearing inspections, you can read our detailed technical walkthrough: [Industrial Guide: Maintaining Cone Crusher Core Bearings and Lubrication Systems].)
Flexible Cavity Configurations for Seamless Production Line Integration
Beyond engineering extreme durability into the chassis, this equipment offers unparalleled structural adaptability within the crushing circuit. The entire chamber is armored with premium high-manganese steel castings (such as Mn18Cr2) for uniform wear, but the true operational flexibility lies in its three distinct cavity configurations:
Standard Type: Features a wider feed throat and a shorter parallel zone, making it the ideal high-volume secondary rock crusher directly following a primary jaw crusher.
Medium Type: Engineered with a balanced parallel zone, serving perfectly as an intermediate reduction unit.
Short Head Type: Utilizes a long, flat parallel zone designed for ultra-fine aggregate shaping and concrete sand production.
As rocks pass through the chamber, the continuous eccentric gyratory movement forces the mantle to periodically approach and recede from the concave. This action subjects the hard ore to powerful multi-angle compression and shearing, delivering premium cubical particles with minimal needle-like fractions.
(However, hardware configuration is only the first step. To learn how to extract the absolute maximum hourly tonnage from these distinct cavity designs, explore our operational blueprint: [Operational Strategy: Synchronizing Material Flow and Aggregate Sizing for Maximum Tonnage].)
